Galileo

Galileo is Savion's latest addition to its family of electrically operated hospital beds. Designed to the most advanced patient care requirements and international standards, Galileo provides dramatic improvements in both patient comfort and hospital care efficiency.
Features | Contact us for more details

Features (partial list – many options and alternatives are available)

Fully-electrically controlled height adjustment,
back-rest, knee-break, trendelenburg and
reverse trendelenburg positioning

split-length or full-length collapsible side-rails

"gooseneck" or "built-in" patient controls

retractable back-rest

built-in bed extension

angle-indicators (on split-length rails)

optional pedal operated height adjustment control

position lock-out, CPR and pre-programmed positions

central locking 150mm (6”) castors

easily removable blow-molded head and foot boards

built-in patient weight indicator system
as a factory fitted option is also available

Galileo – hydraulic version

The heavy-duty, manual version for those requiring a stylish, non-electric, hospital bed.

Fitted with the stylish Galileo blow-molded head and foot boards and plastic stylized trolley covers, the Galileo-Hydraulic offers a manual hydraulic height adjustment mechanism, choice of 2 or 4 section platforms, with pneumatically operated back-rest or back-rest and knee-break, manually operated trendelenburg and reverse trendelenburg including cardiac sitting position, choice of castors including 5" (125mm) or 6" (150mm) with individual braking or central locking, and a wide choice of Savion accessories. Side-rails are collapsible, fully complying with modern safety and entrapment regulations.

The Savion Galileo-Hydraulic offers low cost, rugged,
long-term solutions fully compatible with the
requirements of modern healthcare.
Features | Contact us for more details

Features and options

full-length collapsible side-rails

pedal operated hydraulic height adjustment
from under the head-end

pneumatically operated backrest and knee-break
with release levers on both sides

manual trendelenburg and reverse trendelenburg positions

individual braking or central locking castors

optional orthopedic attachments

a wide range of Savion accessories

General/Examination/Geriatric

Savion offers a very wide range of beds and supplementary products for general hospitalization, patient examination and geriatric care.

Beds can be supplied with fixed or adjustable height, with or without trendelenburg tilting, with mechanical, hydraulic-pneumatic or electrical operation - all in accordance with the customer's requirements and budget. Specialized models - not illustrated - can also be made in response to particular customer specifications. A wide range of accessories, options and finishes is also available for all models.

Variable height full-fowler hospital bed
Model HLF 535P

The HLF535P is a sturdy and practical bed for general hospital care or even for intensive care. The bed is fitted with full-width ABS head and foot boards, pedal operated hydraulic height adjustment, adjustable backrest and knee-break / gatch controlled by pneumatic gas springs and manual trendelenburg and reverse trendelenburg with 5-position ratchet locks.
Many options and accessories - including all electric operation, central locking castors etc. - are available.

Fixed Height Hospital Bed
Model FH 2096

A fixed height bed for general care - with full-width ABS head and foot boards in a choice of colour finishes.
This model can be configured as a 2- or 4-section bed with backrest adjustment and with knee-gatch - either pneumatically operated or electrical.
A wide choice of accessories is also available. This bed can also be delivered PKD for on-site assembly for optimal shipping.

Adjustable height full- or semi-fowler fowler hospital bed
Model HLF 535

The HLF535 is a heavy-duty practical bed for general hospital care or even for intensive care. The bed is fitted with pull-out steel head and foot-end bows with inset laminated panels, rugged revolving corner bumpers, pedal operated hydraulic height adjustment, adjustable backrest and knee-break / gatch controlled by pneumatic gas springs and manual trendelenburg and reverse trendelenburg with 5-position ratchet locks. Many options and accessories - including all electric operation, central locking castors etc. - are available.

Fixed Height Hospital Bed
Model FH 296

A fixed height bed for general care - with pull-out steel head and foot-end bows with inset laminated panels, rugged revolving corner bumpers in a choice of colour finishes. This model can be configured as a 2- or 4-section bed with backrest adjustment and with knee-gatch - either pneumatically operated or electrical.
A wide choice of accessories is also available. This bed can also be delivered PKD for on-site assembly for optimal shipping.

Fixed height hospital bed
Model FH 200

A basic fixed height bed designed for PKD shipping and on-site assembly. In its basic version this bed is without any platform functions, without castors and without head and foot boards.
All these can be added as options.

Variable Height Full Fowler Homecare Bed
Model HCB 694

Available in all electric, electric-pneumatic and hydraulic-pneumatic versions - with full-width beechwood head and foot panels and full-length wooden side-bars, and with full-length under-bed ABS cover and storage tray - with optional trendelenburg mechanism.

Electric physiotherapy table / couch (Bobath)
Model BBT 205

BBT 205 is a mobile adjustable height padded physiotherapy table/couch of the "Bobath" type.
It can be electrically or hydraulically operated and can be manufactured in a range of sizes.

Adjustable height examination couch
Model EBH 235

Hydraulic examination couch - for general patient examination, The EBH235 includes foot-pedal activated hydraulic height adjustment and manual/pneumatic backrest, paper roll holder, padded top and a choice of different types of castors. Suitable for both left/right use, this model is also available with electrically operated height adjustment and/or back-rest.

Adjustable height shower trolley
Model ST 370

The ST370 features twin-pedal hydraulics accessible from both sides, padded shower tray with drainage outlet, built-in oxygen cylinder cradle and full-length storage space in the base, platform tilting function for cleaning and drainage, stainless steel fold-under pneumatically assisted safety sides, and optional IV stand and mobile IV stand towing bracket.

Adjustable height shower trolley
Model ST 360

The ST360 is a hydraulically operated shower trolley with height adjustment pedals on both sides, 4 twin-wheel (or optional alternative) castors, padded shower tray with drainage outlet, with safety side panels opening both on sides and including wedge type pillow.

Nursing home rehabilitation

Specialized beds for geriatric and home care use have been manufactured by Savion Industries for many years.

Beds can be delivered in partially knocked-down or disassembled form directly for assembly in the patient's own home. Finishes are designed to blend with the home environment whilst technologically the beds offer every medical function and traditional Savion reliability and professional finish with manual, hydraulic, pneumatic or electric operation.

Homecare Bed
Model FH 222

A basic and stylish bed for homecare or institutional use, combines fixed height simplicity with 2- or 4-section platform with all wood paneled surround. Platform can be adjusted with the aid of pneumatic gas springs or by electric actuators. A choice of wooden finished is available. Safety side-rails (wooden or epoxy-coated steel) are available.

Classic

4-section steel mesh mattress support, 2-motor adjustment, separable for transport
Wooden head end, foot boards and full length side rails
in beech finish
Additional positioning of foot section
by ratchet telescopic fittings
Emergency lowering by quick-action bolt mechanism
Dual action headrest and knee break adjustment on handset, to help reduce shear when profiling
Total weight (4-piece): 91.5kg
Outer dimensions W/L 102.3 x 212.5cm
Max safe working load: 175kg
Height adjustment: 40cm to 80cm
Adjustment angle of back section: 0° - 70°
Adjustment angle of foot section: 0° - 20

Ultra

4-section mattress support, 2-motor adjustment,
separable for transport
Wooden head end, foot boards and full length side rails
in beech finish
Handset includes locking facility to maintain position
Removable mattress retainers at head and foot sections
Ergonomic adjustment of head and foot sections
Additional positioning of foot section
by Ratchet telescopic fittings
Emergency lowering by quick-action bolt mechanism
Total weight (4-piece): 91.5kg
Outer dimensions W/L 102.3 x 212.5cm
Max safe working load: 175kg
Height adjustment: 40cm to 80cm
Adjustment angle of back section: 0° - 70°
Adjustment angle of foot section: 0° - 20°

Classic Low

Height adjustment: 23cm to 80cm
Quick release motors and control system
Integrated side rails that drop lower than the mattress,
aids patient transfer
Low / High adjustable
Electric backrest, leg rest and knee break
Dual action headrest and knee break adjustment
on handset
Manual lower leg section levelling device
Double rim lock castors
4-section mattress support, 2 motor adjustments,
separate for transport
Total weight: 108kg
Outer dimensions: Width 102cm x Length 213cm
Max working load: 180kg
Mattress support: 90cm x 200cm

Med II

4 section profiling mattress support
Electrically operated from a handset controller
Height adjustable
Profiling lock out function - via handset
Built in height adjustable full length side rails
4 brake castors
Bed Frame Powder coated steel
Total weight: 149kg (23st)
Maximum working load: 200kg (31st)
Mattress Base Height: 40cm - 80cm (16" - 31.5")
Overall size: Width 101.2cm x Length 206cm (40" x 81")
Mattress support:
Width 89cm x Length 199cm (35" x 78.5")
Mattress dimensions:
Width 90cm x Length 200cm (35.5" x 79")
Mattress dimensions: Depth 10cm or 12cm (4" or 4.75")
Adjusting angle - back section: 0 - 70°

Adjustable height shower trolley
Model ST 370

The ST370 features twin-pedal hydraulics accessible from both sides, padded shower tray with drainage outlet, built-in oxygen cylinder cradle and full-length storage space in the base, platform tilting function for cleaning and drainage, stainless steel fold-under pneumatically assisted safety sides, and optional IV stand and mobile IV stand towing bracket.

Adjustable height shower trolley
Model ST 360

The ST360 is a hydraulically operated shower trolley with height adjustment pedals on both sides, 4 twin-wheel (or optional alternative) castors, padded shower tray with drainage outlet, with safety side panels opening both on sides and including wedge type pillow.

Bariatric solutions

Bariatric Care Bed
Model HLF 574

Specially designed and constructed to cater for
the needs of patients weighing up to 500 kg (1100 lbs), the HLF574 has double twin-pedestal hydraulics, and an all electrically operated platform.

Hands-free trendelenburg or reverse trendelenburg can be made safely and smoothly if required, as well as giving cardiac seating position at all bed heights. Siderails - pneumatically weight-compensated - fold completely under the platform to ensure zero transfer gap when transferring patients. Patient lock-out is available, central locking 8" castors are standard and the bed is available with Savion pressure reducing MFFP mattresses, or higher density Visco elastic foam mattresses.

Bariatric Commode
Model SVBC 454

Commode designed for disabled or aged bariatric patients. The reinforced construction and wide seating base make this product ideal for the toilet need of patients who would have difficulty in transfer to the bathroom, or for whom such transfers would be dangerous.

Specifications

Base width: 1060mm (41.73")
Seat width: 906mm (35.67")
Width between arms: 908mm (35.75")
Overall height: 650mm (25.6")
Seat height above floor: 491.8mm (19.36")
Arm rests height above floor: 642.8mm (25.3")
Arm rests height above seat: 0mm-152mm (0"-6")
Weight capacity: 454kg (1000 lbs.)
Weight: 31.7kg (70 lbs.)

Bariatric Walker
Model SVBW 386

Walker designed for disabled or aged bariatric patients. The frame is manufactured from heavy gauge steel tubes and is adjustable both for height and width, to enable it to be used by patients up to 386kg (850 lbs.).

Specifications

Handlebar height range: 787mm-939mm (31”-37”)
Overall width: 653mm-779mm (25.7”-30.7”)
Width inside handle grip: 507mm-635mm (20”-25”)
Depth opened at base: 640mm (25.2”)
Weight capacity: 386kg (850 lbs.)
Weight: 16kg (35.2 lbs.)

Electrically Operated Patient Lifter
Model SVBL 270

A fully electric bariatric patient lifter with capacity of up to 273 kgs (600 lbs), featuring electric opening and closing of the leg gate, as well as electric lifting function, with emergency safety stop, emergency release functions and optional scale. Can perform between 100-200 liftings between battery charges.

Mattresses

The key to speedy and comfortable hospitalization, or to extensive long-term bed-care, is to reduce the occurrence of bed-sores. Savion's pressure reduction care mattress can help to avoid troublesome and painful bed-sores before they require more drastic and costly solutions or treatment.

Savion offers a range of patient care mattresses including model MFFP - with pressure-sore reducing foam with cut-out profile and with waterproof, anti-bacterial, fire-retardant, washable, anti-static, breathing and stretch PU coated polyester fabric cover. Other mattresses are also available, on request.

Mattress
Model MFFP

Visco elastic foam
mattress

Bedside cabinets

Savion offers a range of bedside cabinets and over-bed tables designed and manufactured to blend into the styling of the patient environment and meet both the needs of care providers in respect of space constraints and patient safety and of patient comfort and welfare.

Cabinets are either manufactured with all steel casings and non-peel high pressure laminate (HPL) finishes – or with wooden casings to be used in home or residential care environments.

Styles and finishes can be custom-made if required. Contact Savion Export Sales Department for more details.

Models BSC111 and BSC121 offer built-in double bottle stands, whilst model BSC111 is also fitted with an adjustable height over-bed ABS tray which swivels out and extends over the bed when in use. All models include removable and washable drawer liner. Options include all-round PU perimeter bumper and twin-wheel castors. (model BSC111B).

Cabinet
Model BSC 111B

Cabinets
Models BSC 111 & BSC 121

Overbed Table
model T124

height adjustable
ABS tray with raised edges
luxury twin-wheel castors
epoxy-coated steel construction

Pediatric care

Savion baby and pediatric beds and cots offer a range from cribs for new-born babies through general and intensive care cots and beds for children up to 5 years of age.

All Savion baby and pediatric beds and cots can be specially manufactured to meet particular customer requirements and specifications and come with a wide range of options and accessories.

Pediatric Crib
Model ICC411

Two versions of the ICC 411 stylish and innovative oval-shaped pediatric crib are available: special compact size suitable for infants up to around 2 years of age, or standard pediatric size for children up to around 5 years of age. Both models are fitted with pneumatically powered self-closing and automatic locking safety sides which prevent accidents from falling, or shearing by dropped side-rails and greatly ease the load on the nursing staff. Side-rails can be opened to an infinite number of intermediate stop positions. The cribs are available with 4 platform / deck configurations:

fixed single section non-adjustable platform
single-section platform with one-way tilt mechanism (pneumatic)
single-section platform with 2-way trendelenburg tilt (pneumatic) providing a height adjustable platform
single-section platform with 2-way trendelenburg tilt (fully electric with handset and battery back-up) providing a fully height adjustable platform

A new stylish underbed ABS cover with built-in recessed storage tray for baby effects or equipment, is standard.

Pediatric crib
Model ICC 407

The ICC 407 offers both 2-side or 4-side lowering and is available with single-section steel mesh platform with, or without, trendelenburg functions. This crib can also be delivered PKD (partial knocked down) for on-site assembly for optimal shipping.

Emergency and trauma stretcher/patient trolley
Model ES 710
Model ES 711
Model ES 711X
Model PS 410

The ES710 emergency and transportation stretcher/trolley, with twin-pedestal stability and adjustable backrest functions, hands-free hydraulic trendelenburg and reverse trendelenburg functions, is suited also to the needs of nursing care for small children. Model PS410 is designed specifically for pediatric use.

Trolley and bassinet / crib
Model BTC 400

The BTC400 is a stainless steel trolley with transparent Perspex / acrylic bassinet crib, including a pull-out baby-care shelf. This product is also available in epoxy steel (model BTC401) without the pull-out shelf.

All stainless steel trolley
Transparent perspex / acrylic bassinet
with name-card holder
Bassinet can be placed in trendelenburg
or reverse trendelenburg tilt position
4" rubber treaded or twin-wheel castors
With undershelf
Complete with 2" mattress with water-proof, anti-bacterial, fire-retardant cover

Bassinet and Trolley
Model BTC 401

Epoxy coated tubular steel framed trolley
Transparent perspex / acrylic bassinet
with name-card holder
Cradle can be placed in trendelenburg
and reverse trendelenburg tilt
4" rubber tread or twin-wheel castors
Complete with 2" mattress with water-proof, anti-bacterial, fire-retardant cover
With under-shelf

Medi-Cruiser™

Savion’s Medi-Cruiser™ is a unique, all-purpose, self-propelled motorized transportation and emergency stretcher.
It is the pioneering product, and a core component, of a revolutionary new generation of motorized medical transportation systems that provide a breakthrough in medical facilities emergency and logistics operations.

A unique cutting edge stretcher
Allows more efficient management of transportation
and logistical manpower
Protects operating staff from damage to health from repeated and strenuous high-load exertion
Comfortable and safe for the patient
Can be self-driven by means of a unique
transporter trolley platform or pushed on foot
With reverse direction driving mode
Two speeds available when in forward drive mode
Very high maneuverability
Can be powered-off and handled as a manual stretcher/trolley
Storage tray with O2 cylinder cradle in the base cover
Includes combined patient records storage compartment / monitor tray
Built-in telescopic IV pole
Electronic programmable control with malfunction indicators
Rechargeable batteries
Warning horn

Patient trolleys / Stretchers

Emergency and trauma stretchers
Model ES 710
Model ES 711
Model ES 711X

The ES710 is a 2-section emergency and transportation stretcher / patient trolley, with twin-pedestal stability and adjustable backrest functions (to 90º), and hands-free hydraulic trendelenburg and reverse trendelenburg functions (+/- 17º).

All ES710, ES711 and ES709 models are fitted with large 200mm (8”) central-locking castors, with directional-locking steering castor or with the option of 5th wheel castor for enhanced maneuverability.

The ES710 is fitted with full-length pneumatically assisted fold-under side-rails or with optional ¾ length collapsible side-rails.

Model ES711X incorporates a full-length fixed x-ray-lucent platform deck, with x-ray-cassette access throughout the entire length and full-length pneumatically assisted fold-under side-rails. All models are also available in bariatric version with enhanced load capacity of up to 350 kgs (770 lbs).

Model ES711 - also full-length x-ray lucent - has an elevating x-ray cassette shelf and is supplied with collapsible side-rails.

C-Arm trauma stretcher
Model EC 711CA

This model features a two-section sliding x-ray lucent mattress platform – compatible for use with C-Arm systems - as well as full-length under-platform elevating x-ray cassette shelf, for use with standard x-ray cassette systems.
In addition to the twin-pedestal hydraulic height adjustment, the ES711CA also has a 90° back-rest, collapsible fold-down side-rails and central locking 200mm (8") castors. A wide range of options and accessories is available

Emergency and trauma stretcher
Model ES 710FF

In addition to the twin-pedestal hydraulics, under-bed storage and hands-free trendelenburg, the ES710FF also features knee-break/gatch, operated by manual crank, full-length pneumatically assisted fold-under side-rails and many accessories. This model can also be manufactured with x-ray lucent deck (ES711XFF) with ¾ length collapsible side-rails.

Transportation stretcher
Model ES 709

A fixed height emergency and transportation stretcher - the ES709 is intended primarily for patient transportation. The platform height can be set at one of 5 different height settings as required by the nursing staff.
The ES709 is fitted with full-length pneumatically assisted fold-under side-rails or with ¾ length collapsible side-rails. Options include a full-length x-ray lucent deck and a wide range of Savion options and accessories.

Pediatric Stretcher
Model PS410

A hydraulic, fully height adjustable stretcher, specially designed for the safe emergency transportation and treatment of small children – with full closed safety sides and all the features of the adult emergency and transportation stretchers. Many options and accessories available.

Surgical

Hydraulic ophthalmic surgery stretcher
Model ESS707

Twin-pedal operation from both sides
Hands-free trendelenburg and reverse trendelenburg
Central locking 8" (200mm) castors with steering castor or optional 5th wheel
Brake pedals on each corner
Adjustable backrest (fowler) and knee-gatch (optional) by pneumatic gas springs, manual cranks, or with fully electrical operation
Collapsible (fold-down) siderails
Articulating ophthalmic head support, with precision double-action friction lock, for exact positioning
New articulated head-set with adjustable padded wrist support attachment

Hydraulic surgeon's chair / stool
Model SC100

SC100 - hydraulic surgeon's chair / stool offering:

Foot-pedal operated hydraulic height adjustment
With separate lowering pedal
or optional single-pedal operation
Fully adjustable backrest and armrests
Rocker pedal chair swivel locking
Luxury twin-wheel castors
Stylish ABS cowling protector

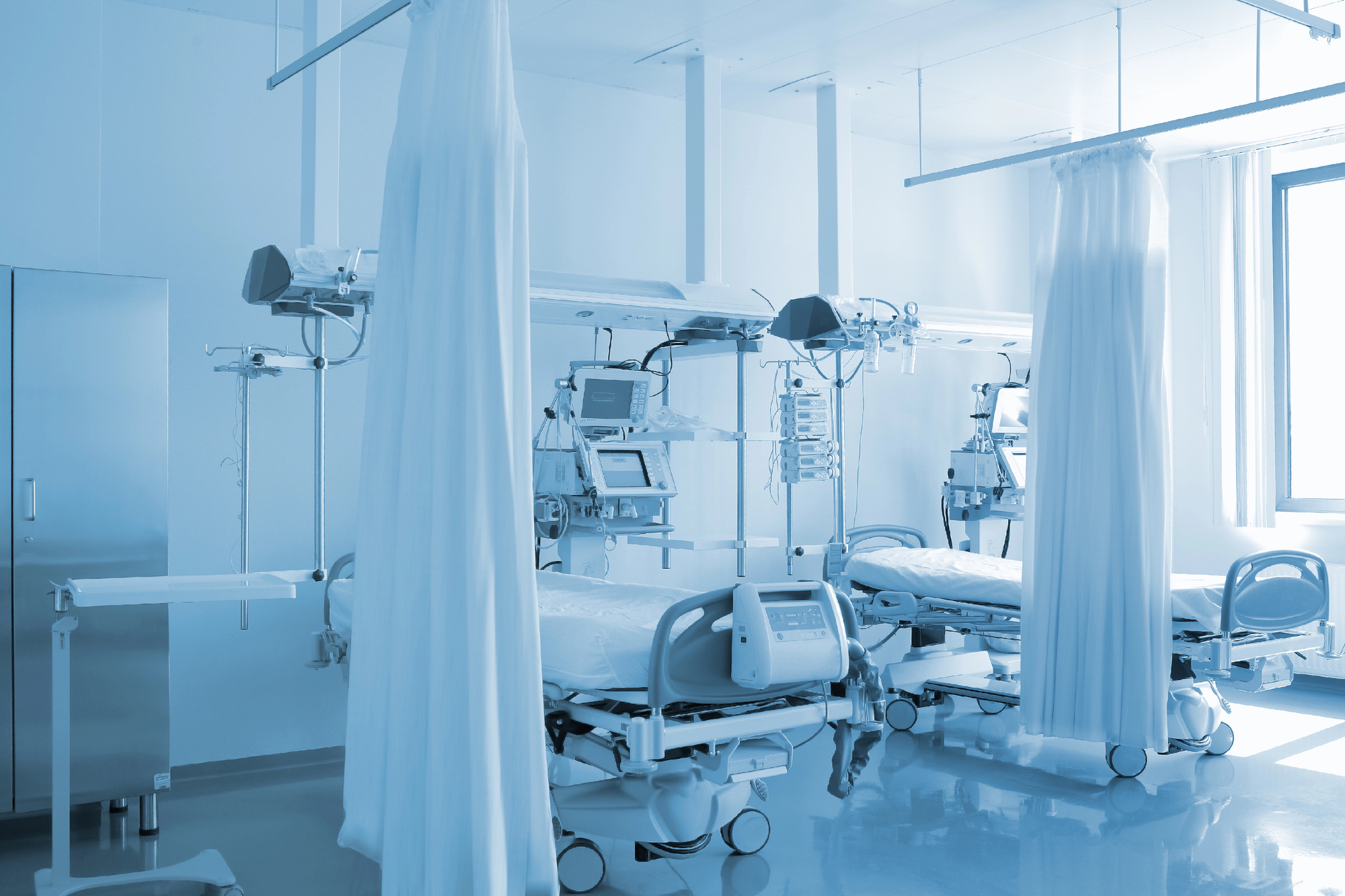

ICU / CCU beds

Beds for intensive and critical care include models from both the
state-of-the-art Galileo line as well as more basic manual beds to match the needs of every type of medical institution, the patient care required and the budget.
Beds can be made available in fully- or partially- electric versions, or with manual hydraulic-pneumatic operation.

Many models offer x-ray capabilities and patient weighing systems. A wide range of Savion accessories is available for all models.

Electric ICU Bed
Galileo

Galileo is Savion's latest addition to its family of electrically operated hospital beds. Designed to the most advanced patient care requirements and international standards, Galileo provides dramatic improvements in both patient comfort and hospital care efficiency. Features | Contact us for more details

Electric ICU Bed
Model IC 930

Offers fully electrical operation of the bed - with optional built-in weighing system - along with new-styled full-width ABS plastic head and foot boards. Options include different types of platform surfaces, CPR functions and x-ray lucent backrest.

Electric ICU Bed
Model HLF 576

Combines hydraulic twin pedestal height adjustment with electrical operation of the backrest and knee break as well as finished with full-width ABS head and foot boards.

Variable Height Full Fowler Hospital Bed
Model HLF 535P

The HLF535P is a sturdy and practical bed for general hospital care or even for intensive care.
The bed is fitted with full-width ABS head and foot boards, pedal operated hydraulic height adjustment, adjustable backrest and knee-break / gatch controlled by pneumatic gas springs and manual trendelenburg and reverse trendelenburg with 5-position ratchet locks. Many options and accessories - including all electric operation, central locking castors - are available.

ICU Bed
Model HLF 560P

The HLF560P - available with hydraulic-pneumatic operation, partial electric or full electric operation – is designed for general intensive care.

The bed is fitted with pneumatic trendelenburg adjustment. Additional options include x-ray-lucent backrest, choice of castors - including central locking, and a wide range of accessories.

Models HLF535 and HLF560 are also available with steel head and foot bows fitted with inset laminated panels instead of full-width ABD head and foot boards.

Pediatric Crib
Model ICC411

Two versions of the ICC 411 stylish and innovative oval-shaped pediatric crib are available: special compact size suitable for infants up to around 2 years of age, or standard pediatric size for children up to around 5 years of age. Both models are fitted with pneumatically powered self-closing and automatic locking safety sides which prevent accidents from falling, or shearing by dropped side-rails and greatly ease the load on the nursing staff. Side-rails can be opened to an infinite number of intermediate stop positions. The cribs are available with 4 platform / deck configurations:

fixed single section non-adjustable platform
single-section platform with one-way tilt mechanism (pneumatic)
single-section platform with 2-way trendelenburg tilt (pneumatic) providing a height adjustable platform
single-section platform with 2-way trendelenburg tilt (fully electric with handset and battery back-up) providing a fully height adjustable platform

A new stylish underbed ABS cover with built-in recessed storage tray for baby effects or equipment, is standard.

Shower/Decontamination Trolleys

Indispensable in rehabilitation, nursing-care, emergency rooms or burns-care units, the hydraulic shower trolley enables patients to be bathed and/or decontaminated - often by only one nurse or care-giver. Savion models provide padded and waterproof shower trays, a wide height adjustment range, access to the patient from both sides, full maneuverability and mobility together with simplicity of operation. An electric version – as well as many accessories - is also available.

Adjustable height shower trolley
Model ST 370

The ST370 features twin-pedal hydraulics accessible from both sides, padded shower tray with drainage outlet, built-in oxygen cylinder cradle and full-length storage space in the base, platform tilting function for cleaning and drainage, stainless steel fold-under pneumatically assisted safety sides, and optional IV stand and mobile IV stand towing bracket.

Adjustable height shower trolley
Model ST 360

The ST360 is a hydraulically operated shower trolley with height adjustment pedals on both sides, 4 twin-wheel (or optional alternative) castors, padded shower tray with drainage outlet, with safety side panels opening both on sides and including wedge type pillow.

Isolation Stretchers

Isolation stretchers are made by mounting negative-pressure chambers on transportation stretchers / patient trolleys – including motorized stretchers. The system is designed for first line patient transportation from initial patient reception and through to hospitalization in sterile isolation units.

The system can isolate highly contagious diseases such as viral hemorrhagic fevers, including Ebola, as well as SARS, smallpox, monkeypox, avian influenza, and many others.

Isolation stretchers are thus indispensable as means to contain and eliminate epidemics, while ensureing the safety of other patients and attendant medical staff.

Contact us for more information

Isolation stretcher
Model IS 736

Full air circulation within the chamber, by means of a carbon filter and blower, enables patients to remain inside long enough for a full diagnosis and initial treatment, whilst eliminating any expulsion of contaminated air to the outside
Rechargeable batteries allow full mobility of the units for up to 10 hours of continuous operation
A fully transparent chamber, fitted with conduit sleeves to allow diagnosis and medical treatment. Also fitted are facilities for connecting monitoring equipment cables, ventilation tubes or intravenous drips
The units can accommodate patients of all ages, whether conscious, unconscious, or on ventilation
Isolation chambers allow full operation of the stretcher or pediatric bed – including height adjustment, back-rest adjustment and trendelenburg function for CPR administration

Mobile Isolation Quarantine Chamber
Mobile Isolation

The portable isolation chamber is designed for rapid setup of a biologically isolated space from a clean outside environment.
it is a complete solution for turning any room or space into a contained area, allowing for the isolation of infected of contaminated patients
The isolation chamber is designed for the isolation of patients while maintaining a safe environment for those outside the chamber
The space inside can accommodate working benches, chairs and all required equipment. However its main feature is to focus on treatment form outside.
The Air Filtration System is an NBC (Nuclear, Biological & Chemical) Collective protection system designed for up to 6 persons that are staying inside a sealed safe room in emergency threats situation of hazardous deadly chemical warfare gases and biological agent threats.
The system is approved by the Israeli Standard Institute and by the Israeli Defense Forces.
The system will suck contaminated air from the Chamber through a blast income air valve, and Filter it outside of the chamber.
A blast release valve will then operate for leveling the pressurized chamber in the required pressure level. Contaminated air from the chamber will pass through a two stage NBC filter with certain specifications that ensures safe breathing without the necessity of personal respirator mask.
In our system, the NBC Filter insures full filtering of the air that goes out from the chamber.

Mobile Compact Isolation Chamber
Mobile Compact Isolation Chamber

The portable Mobile Compact isolation Chamber (MCC700) is designed for ambulance stretcher, hospital beds and stretchers for transportation in ambulances and inside hospitals.
The MCC 700 is a complete solution to protect Medical staff, patients and others from being effected by the Corona Virus/suspicions Corona Virus patients.
The Isolation chamber is designed for isolating of patients while transferring in a safe environment for those outside the MCC.
The Air Filtration System is an NBC (Nuclear, Biological & Chemical) protection system designed for transporting patients indoor/outdoor and during ambulance transfer to the hospital allowing for the infected patient to stay inside a sealed safe chamber in emergency threats situation.
The system will suck contaminated air from the chamber through a blast income air valve and filter it outside of the chamber.
A blast release valve will then operate for leveling the pressurized chamber in the required pressure level. Contaminated air from the chamber will pass through a two stage NBC filter with certain specifications that ensures safe breathing without the necessity of personal respirator mask.
In our system, the NBC Filter insures full filtering of the air that goes out from the chamber.

Pediatric isolation chamber crib
Model PIC 436

For first line baby and child transportation from initial
patient reception and through to hospitalization in sterile
isolation units, whilst at the same time ensuring the complete safety and security for the attendant medical staff and other patients, against contamination.
Access is possible for up-to 3 care-givers through conduit sleeves, which are replaceable after contamination, and through conduits for inserting drips, tubes and cables.

Patient Lifters

Electrically Operated Patient Lifter
Model SVBL 270

A fully electric bariatric patient lifter with capacity of up to 273 kgs (600 lbs), featuring electric opening and closing of the leg gate, as well as electric lifting function, with safety emergency stop, emergency release functions and optional scale. Can perform between 100-200 liftings between battery charges.

Electrically Operated Patient Lifter
Model SVBL 205

A fully electric bariatric patient lifter with capacity of up to 205 kgs (450 lbs), featuring electric opening and closing of the leg gate, as well as electric lifting function, with safety emergency stop, emergency release functions and optional scale. Can perform between 100-200 liftings between battery charges.

Electrically Operated Patient Lifter
Model SVL 205

A fully electric bariatric patient lifter with capacity of up to 205 kgs (450 lbs), featuring manual opening and closing of the leg gate and an electric lifting function, with safety emergency stop, emergency release functions and optional scale. Can perform between 100-200 liftings between battery charges.
